Speed and accessibility

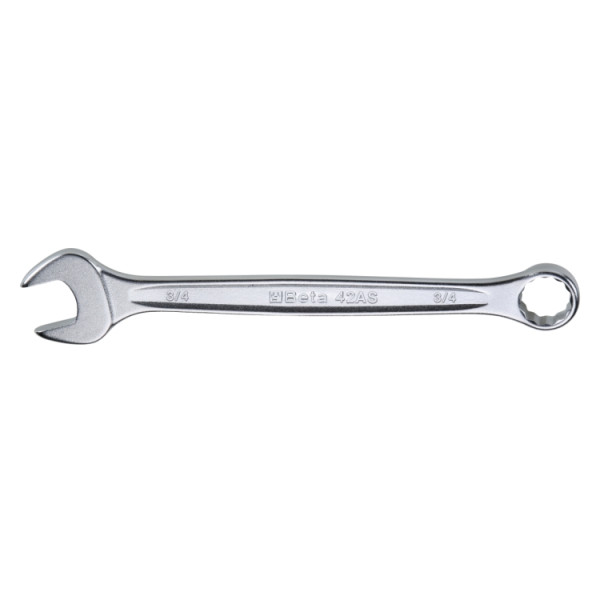

The 15° inclination of the fork with respect to the axis reduces the angle of recovery, while the reduced thickness of the wrench improves accessibility, even in tight spaces.
Resistance and protection
This wrench is designed for high strength: even in the event of incorrect use, it does not break suddenly, but deforms gradually, preventing sudden damage. The chrome-plated nickel finish also offers long-term protection against external influences, successfully passing the rigorous adhesion tests laid down in ISO 2819.
Homogeneity
The forging starts from a semi-finished product with a round cross-section that guarantees the fibres a homogeneous distribution, excluding the formation of dangerous internal tensions
Ergonomics
The polygonal eye is inclined by 15° to ensure greater protection of the hand during use. The shape is made directly from a mould, without additional bending. In addition, the wrench length, which is longer than that of most competitors, allows high torques to be applied with less effort.
High performance
Designed for strength, the wrench gradually deforms in the event of improper use, preventing sudden breakage.
Ergonomic design
Elegant and sleek design, characterised by light lines and a lighter feel
Compatibility
The shape is perfectly compatible with all historic wrench 42 housings and modules
| Product Name | Art. | MI " | MI1 " | L mm | H mm | Ø mm | S mm | S1 mm | α ° |
g |
Quantity | Action |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 000421106 | 42AS 1/4 | 1/4 | 1/4 | 95 | 15,2 | 10,4 | 5,2 | 3,4 | 15 | 12 |
|
|
| 000421107 | 42AS 9/32 | 9/32 | 9/32 | 106 | 17,1 | 11,1 | 5,7 | 3,6 | 15 | 18 |
|
|
| 000421108 | 42AS 5/16 | 5/16 | 5/16 | 116 | 19 | 12,6 | 6,2 | 3,9 | 15 | 23 |
|
|
| 000421110 | 42AS 3/8 | 3/8 | 3/8 | 137 | 22,8 | 15,4 | 7,1 | 4,5 | 15 | 35 |
|
|
| 000421111 | 42AS 7/16 | 7/16 | 7/16 | 148 | 24,8 | 16,8 | 7,5 | 4,8 | 15 | 44 |
|
|
| 000421113 | 42AS 1/2 | 1/2 | 1/2 | 169 | 28,8 | 19,6 | 8,4 | 5,4 | 15 | 66 |
|
|
| 000421114 | 42AS 9/16 | 9/16 | 9/16 | 180 | 30,8 | 21 | 8,8 | 5,7 | 15 | 80 |
|
|
| 000421115 | 42AS 19/32 | 19/32 | 19/32 | 191 | 32,7 | 22,4 | 9,2 | 6,0 | 15 | 95 |
|
|
| 000421116 | 42AS 5/8 | 5/8 | 5/8 | 201 | 34,6 | 23,8 | 9,7 | 6,3 | 15 | 105 |
|
|
| 000421117 | 42AS 11/16 | 11/16 | 11/16 | 212 | 36,6 | 25,2 | 10,2 | 6,7 | 15 | 120 |
|
|
| 000421119 | 42AS 3/4 | 3/4 | 3/4 | 233 | 40,5 | 28 | 11,4 | 7,3 | 15 | 160 |
|
|
| 000421121 | 42AS 13/16 | 13/16 | 13/16 | 254 | 44,5 | 30,7 | 12,4 | 7,9 | 15 | 205 |
|
|
| 000421122 | 42AS 7/8 | 7/8 | 7/8 | 264 | 46,4 | 32,2 | 12,8 | 8,1 | 15 | 225 |
|
|
| 000421124 | 42AS 15/16 | 15/16 | 15/16 | 285 | 50,3 | 34,9 | 13,5 | 8,5 | 15 | 290 |
|
|
| 000421125 | 42AS 1 | 1 | 1 | 296 | 52,3 | 36,2 | 13,8 | 8,7 | 15 | 310 |
|
|
| 000421127 | 42AS 1.1/16 | 1.1/16 | 1.1/16 | 317 | 56,2 | 39 | 14,6 | 9,1 | 15 | 375 |
|
|
| 000421129 | 42AS 1.1/8 | 1.1/8 | 1.1/8 | 338 | 60,2 | 41,9 | 15,3 | 9,5 | 15 | 450 |
|
|
| 000421132 | 42AS 1.1/4 | 1.1/4 | 1.1/4 | 370 | 66 | 45,7 | 16,2 | 10,1 | 15 | 565 |
|
|
| 000421133 | 42AS 1.5/16 | 1.5/16 | 1.5/16 | 391 | 70 | 48,5 | 16,8 | 10,5 | 15 | 680 |
|
|
| 000421135 | 42AS 1.3/8 | 1.3/8 | 1.3/8 | 412 | 73,9 | 51,3 | 17,5 | 10,7 | 15 | 835 |
|
|
| 000421136 | 42AS 1.7/16 | 1.7/16 | 1.7/16 | 412 | 73,9 | 51,3 | 17,5 | 10,9 | 15 | 825 |
|
|
| 000421138 | 42AS 1.1/2 | 1.1/2 | 1.1/2 | 433 | 77,9 | 54 | 18,2 | 11,3 | 15 | 965 |
|
|
