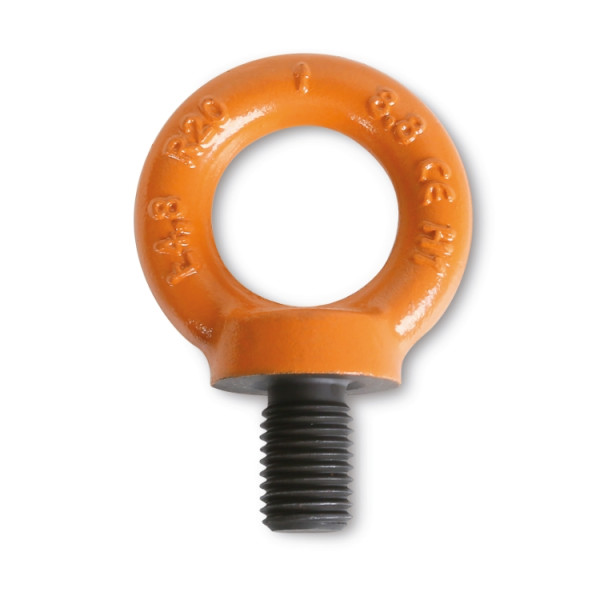

Lifting eyebolts, high-tensile alloy steel

Quick Overview

TECHNICAL DATA
• safety factor: 4
• heat treatment: hardening and tempering
• traceability code
LABORATORY TESTS
• chemical analysis
• metallographic analysis
• tensile test
• fatigue test (20,000 cycles)
• proof load test (100% of batch)
AVAILABLE CERTIFICATES
• Technical product specifications
• Test report UNI EN10204 type 2.2
• Inspection certificate UNI EN10204 type 3.1
• CE Declaration of Conformity

Find a dealer

Images with
dimensions

Coded items

Product Name	Art.				WLL kg
080410206	8041HP M6	M6	1	11	400
080410208	8041 M8	M8	1,25	13	800
080410210	8041 M10	M10	1,5	17	1000
080410212	8041 M12	M12	1,75	20,5	1600
080410214	8041HP M14	M14	2	20,5	3000
080410217	8041HP M16	M16	2,5	27	4000
080410218	8041HP M18	M18	2,5	27	5000
080410221	8041HP M20	M20	3,0	30	6000
080410222	8041HP M22	M22	2,5	30	7000
080410225	8041HP M24	M24	3	36	8000
080410227	8041HP M27	M27	3	41	10000
080410230	8041 M30	M30	3,5	45	12000
