BETA 1946

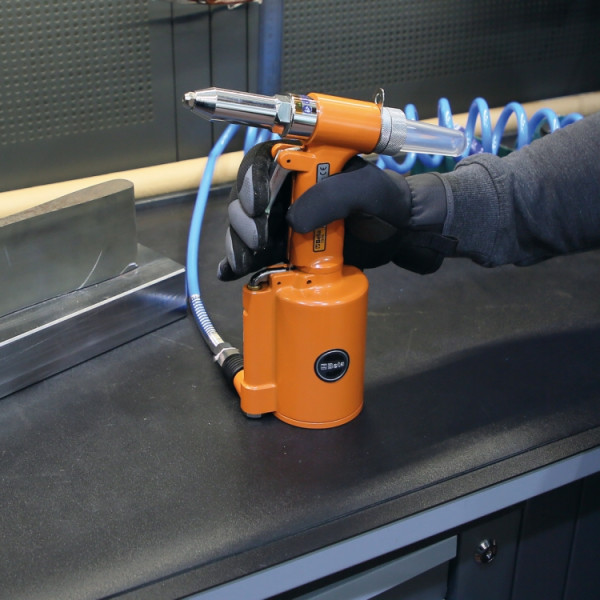

Air riveter

Name: Air riveter
Brand: Beta Utensili
SKU: 1946

Staples type 80, section 0.95x0.65 mm (21-Gauge), width 12.8 mm, for item 1945S

Heads for structural rivets

BETA 1946

Air riveter

Staples type 80, section 0.95x0.65 mm (21-Gauge), width 12.8 mm, for item 1945S

Heads for structural rivets

Simple to use, balanced and easily transportable, it can be operated with one hand, saving time and effort.

Supplied with 2.4 - 3.2 - 4.0 - 4.8 mm interchangeable nozzles.

Certifications and Documents

Characteristics

Pneumatic riveter

HIGH PERFORMANCE AND RELIABILITY

Riveter made of strong, highly durable materials that give the tool greater reliability and speed in work.

SAFE AND EFFECTIVE

Suitable for general maintenance work meets the industry's high standards in terms of safety and efficiency.

EASE OF USE

A comfortable handle and well-distributed weight ensure comfort even with prolonged use.

TANK

Supplied with rivet collecting tank useful for clean and tidy work.

AIR INLET

1/4" GAS air inlet.

Dimensions

References

The Wishlist allows you to compile a product list, export it or send it to your dealer.

Product Name	Art.		 kg	Quantity	Action
019460001	1946	1946-air riveter	1,5

Accessories and spare parts

Spare parts

Id	Product Name	Art.	Description
N.15-16-19-20-25-26-38-49-51-52-53-54-55-56	019460010	1946R	service kit for item 1946
1	019460501	1946 P-01	1946-P-01-nozzle for rivets (4,8)
2	019460502	1946 P-02	1946-P-02-nozzle for rivets (4)
3	019460503	1946 P-03	1946-P-03-nozzle for rivets (3,2)
4	019460504	1946 P-04	1946-P-04-nozzle for rivets (2,4)
6	019460506	1946 P-06	1946-P-06-clamps holding cone
7	019460507	1946 P-07	1946-P-07-cone holding head
8	019460508	1946 P-08	1946-P-08-clamp (2 pcs.)
9	019460509	1946 P-09	1946-P-09-clamps opener
10	019460510	1946 P-10	1946-P-10-lock washer
11	019460511	1946 P-11	1946-P-11-spring
12	019460512	1946 P-12	1946-P-12-o-ring
13	019460513	1946 P-13	1946-P-13-nozzle holder
14	019460514	1946 P-14	1946-P-14-nut
15	019460515	1946 P-15	1946-P-15-plastic washer
16	019460516	1946 P-16	1946-P-16-o-ring (4 pcs.)
17	019460517	1946 P-17	1946-P-17-housing handle
18	019460518	1946 P-18	1946-P-18-oleodynamic piston
19	019460519	1946 P-19	1946-P-19-o-ring
20	019460520	1946 P-20	1946-P-20-washer
21	019460521	1946 P-21	1946-P-21-spring
22	019460522	1946 P-22	1946-P-22-hook
23	019460523	1946 P-23	1946-P-23-double ring
24	019460524	1946 P-24	1946-P-24-knurled collar
25	019460525	1946 P-25	1946-P-25-neils container
26	019460526	1946 P-26	1946-P-26-fastening pin
28	019460528	1946 P-28	1946-P-28-plastic washer
29	019460529	1946 P-29	1946-P-29-nut
30	019460530	1946 P-30	1946-P-30-damper
31	019460531	1946 P-31	1946-P-31-cylinder housing
32	019460532	1946 P-32	1946-P-32-piston stem
33	019460533	1946 P-33	1946-P-33-piston body
34	019460534	1946 P-34	1946-P-34-nut
35	019460535	1946 P-35	1946-P-35-piston washer (large)
36	019460536	1946 P-36	1946-P-36-piston washer (small)
37	019460537	1946 P-37	1946-P-37-rubber piston ring
38	019460538	1946 P-38	1946-P-38-o-ring
39	019460539	1946 P-39	1946-P-39-cylinder cover
40	019460540	1946 P-40	1946-P-40-spanner
41	019460541	1946 P-41	1946-P-41-nozzles key
42	019460542	1946 P-42	1946-P-42-stem pin
43	019460543	1946 P-43	1946-P-43-lever pin
44	019460544	1946 P-44	1946-P-44-stem
45	019460545	1946 P-45	1946-P-45-lever
46	019460546	1946 P-46	1946-P-46-stem pin
47	019460547	1946 P-47	1946-P-47-bilancer
48	019460548	1946 P-48	1946-P-48-balancer pin
49	019460549	1946 P-49	1946-P-49-o-ring
50	019460550	1946 P-50	1946-P-50-stem valve
51	019460551	1946 P-51	1946-P-51-spring
52	019460552	1946 P-52	1946-P-52-valve
53	019460553	1946 P-53	1946-P-53-valve guide
54	019460554	1946 P-54	1946-P-54-o-ring
55	019460555	1946 P-55	1946-P-55-spring
56	019460556	1946 P-56	1946-P-56-o-ring
57	019460557	1946 P-57	1946-P-57-valve cap

Show full list

Certifications and documents

Product Sheet

Instruction booklet
