WORKING LOAD AND DURABILITY
High-tensile alloy steel allows high mechanical performance and ensures a long service life.
SUITABLE FOR HEAVY-DUTY USE
Designed to withstand over 20,000 work cycles at full load, they are suitable for continuous and repeated use at maximum capacity.
WIDE TEMPERATURE RANGE OF USE
The quality of the materials used allows them to be used at both low and high temperatures (-40°/+200°) without any change in mechanical and performance characteristics.
CAPACITY AND ANGLES OF PULL

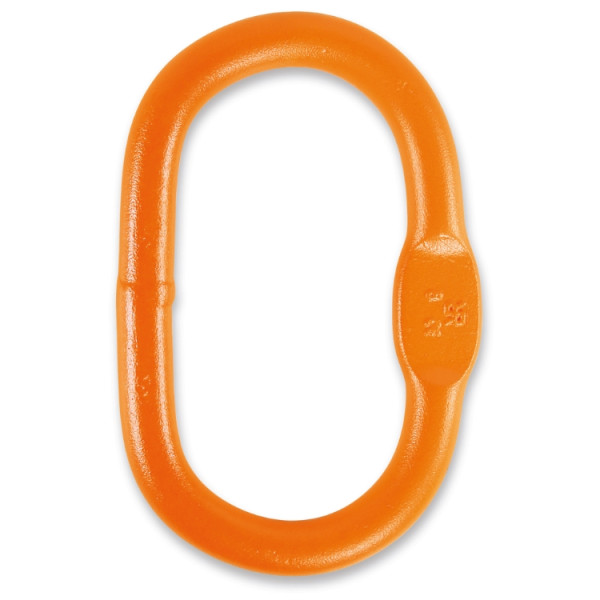

Simple lifting master links are used for the assembly of one and two arm pendants. The angle of pull influences the load capacity of the chain pendant components.
| Product Name | Art. | WLL kg | Ø mm | A mm | B mm |
Quantity | Action |
|---|---|---|---|---|---|---|---|
| 080850215 | 8085R 1,6 | 1600 | 7 | 110 | 60 |
|
|
| 080850220 | 8085R 2,12 | 2120 | 8 | 110 | 60 |
|
|
| 080850253 | 8085R 5,3 | 5300 | 13 | 160 | 90 |
|
|
| 080850232 | 8085R 3,15 | 3150 | 10 | 135 | 75 |
|
|
| 080850280 | 8085R 8,0 | 8000 | 16 | 180 | 100 |
|
|
| 080850311 | 8085R 11,2 | 11200 | 19 | 200 | 110 |
|
|
| 080850316 | 8085R 16,0 | 16000 | 20 | 260 | 140 |
|
|
| 080850317 | 8085R 17,0 | 17000 | 22 | 300 | 160 |
|
|
