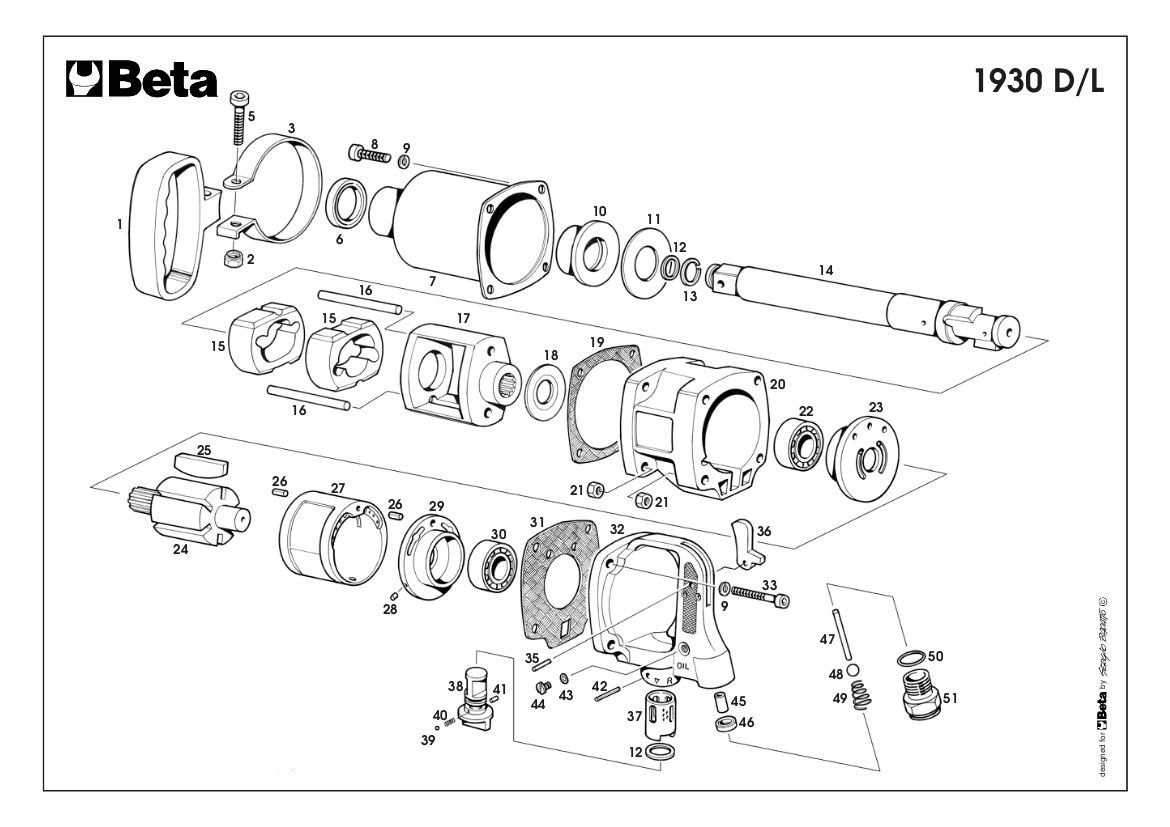

N.12-13-19-31-39-40-43-46-49-50 |
|
019300017 |
1930DLR |
kit di manutenzione per 1930DL |
|
1 |
|
019300701 |
1930 P-DL01 |
impugnatura P-DL01 |
|
2 |
|
019300702 |
1930 P-DL02 |
dado P-DL02 |
|
3 |
|
019300703 |
1930 P-DL03 |
anello impugnatura P-DL03 |
|
5 |
|
019300705 |
1930 P-DL05 |
vite cava esagonale P-DL05 |
|
6 |
|
019300706 |
1930 P-DL06 |
paraolio P-DL06 |
|
7 |
|
019300707 |
1930 P-DL07 |
corpo anteriore P-DL07 |
|
8 |
|
019300708 |
1930 P-DL08 |
vite cava esag. (4pz.) P-DL08 |
|
9 |
|
019300709 |
1930 P-DL09 |
rondella elastica (8pz.) P-DL09 |
|
10 |
|
019300710 |
1930 P-DL10 |
boccola P-DL10 |
|
11 |
|
019300711 |
1930 P-DL11 |
distanziale P-DL11 |
|
12 |
|
019300712 |
1930 P-DL12 |
o-ring P-DL12 |
|
13 |
|
019300713 |
1930 P-DL13 |
anello ferma bussola P-DL13 |
|
14 |
|
019300714 |
1930 P-DL14 |
albero P-DL14 |
|
15 |
|
019300715 |
1930 P-DL15 |
martello (2 pz.) P-DL15 |
|
16 |
|
019300716 |
1930 P-DL16 |
perno martelli (2 pz.) P-DL16 |
|
17 |
|
019300717 |
1930 P-DL17 |
gabbia martelli P-DL17 |
|
18 |
|
019300718 |
1930 P-DL18 |
distanziale P-DL18 |
|
19 |
|
019300719 |
1930 P-DL19 |
guarnizione P-DL19 |
|
20 |
|
019300720 |
1930 P-DL20 |
corpo centrale P-DL20 |
|
21 |
|
019300721 |
1930 P-DL21 |
dado (8 pz) P-DL21 |
|
22 |
|
019300722 |
1930 P-DL22 |
cuscinetto P-DL22 |
|
23 |
|
019300723 |
1930 P-DL23 |
piastra anteriore P-DL23 |
|
24 |
|
019300724 |
1930 P-DL24 |
rotore P-DL24 |
|
25 |
|
019300725 |
1930 P-DL25 |
set palette (6 pz.) P-DL25 |
|
26 |
|
019300726 |
1930 P-DL26 |
spina elastica (2 pz.) P-DL26 |
|
27 |
|
019300727 |
1930 P-DL27 |
cilindro P-DL27 |
|
28 |
|
019300728 |
1930 P-DL28 |
spina elastica P-DL28 |
|
29 |
|
019300729 |
1930 P-DL29 |
piastra posteriore P-DL29 |
|
30 |
|
019300730 |
1930 P-DL30 |
cuscinetto P-DL30 |
|
31 |
|
019300731 |
1930 P-DL31 |
guarnizione P-DL31 |
|
32 |
|
019300732 |
1930 P-DL32 |
impugnatura posteriore P-DL32 |
|
33 |
|
019300733 |
1930 P-DL33 |
vite cava esag. (4 pz.) P-DL33 |
|
34 |
|
019300734 |
1930 P-DL34 |
perno P-DL34 |
|
35 |
|
019300735 |
1930 P-DL35 |
perno P-DL35 |
|
36 |
|
019300736 |
1930 P-DL36 |
pulsante P-DL36 |
|
37 |
|
019300737 |
1930 P-DL37 |
boccola dell'invertitore P-DL37 |
|
38 |
|
019300738 |
1930 P-DL38 |
valvola dell'invertitore P-DL38 |
|
39 |
|
019300739 |
1930 P-DL39 |
sfera P-DL39 |
|
40 |
|
019300740 |
1930 P-DL40 |
molla P-DL40 |
|
41 |
|
019300741 |
1930 P-DL41 |
spina elastica P-DL41 |
|
42 |
|
019300742 |
1930 P-DL42 |
spina elastica P-DL42 |
|
43 |
|
019300743 |
1930 P-DL43 |
o-ring P-DL43 |
|
44 |
|
019300744 |
1930 P-DL44 |
vite oliatore P-DL44 |
|
45 |
|
019300745 |
1930 P-DL45 |
sede valvola P-DL45 |
|
46 |
|
019300746 |
1930 P-DL46 |
boccola P-DL46 |
|
47 |
|
019300747 |
1930 P-DL47 |
valvola ad asta P-DL47 |
|
48 |
|
019300748 |
1930 P-DL48 |
sfera P-DL48 |
|
49 |
|
019300749 |
1930 P-DL49 |
molla conica P-DL49 |
|
50 |
|
019300750 |
1930 P-DL50 |
o-ring P-DL50 |
|
51 |
|
019300751 |
1930 P-DL51 |
attacco aria P-DL51 |
|
