  • Lifting eyebolts, double swivel ring, turnable under load, with welded ring, high-tensile alloy steel

Product was successfully added to your shopping cart.
8049A New

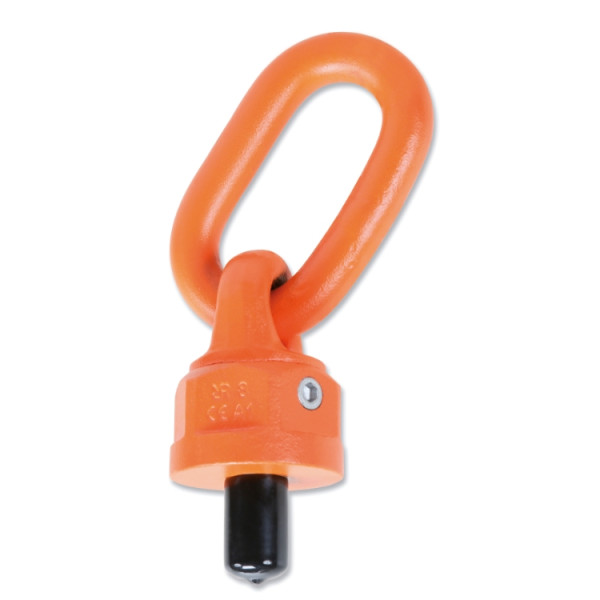

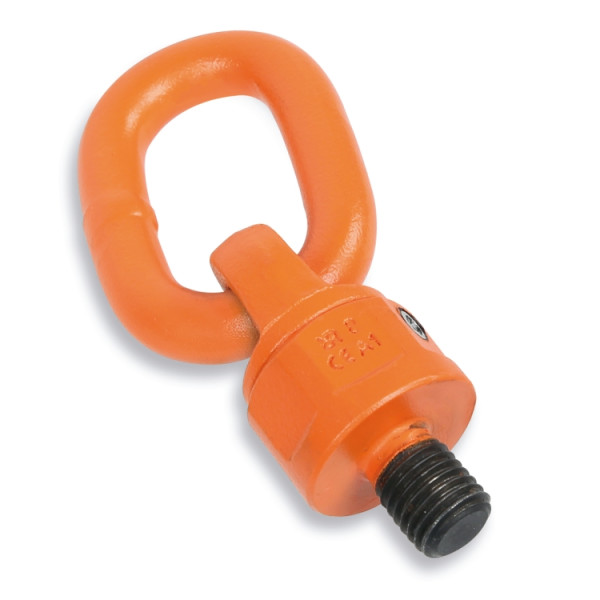

Lifting eyebolts, double swivel ring, turnable under load, with welded ring, high-tensile alloy steel

Quick Overview

- Eyebolt rotates through 360°; ring rotates through 180°

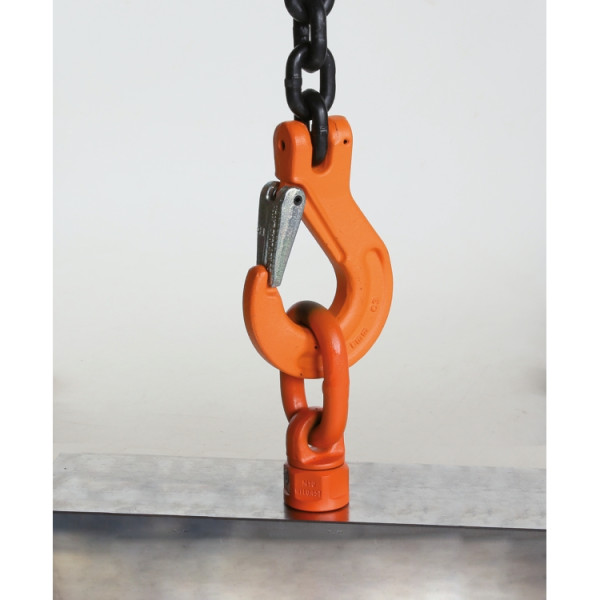

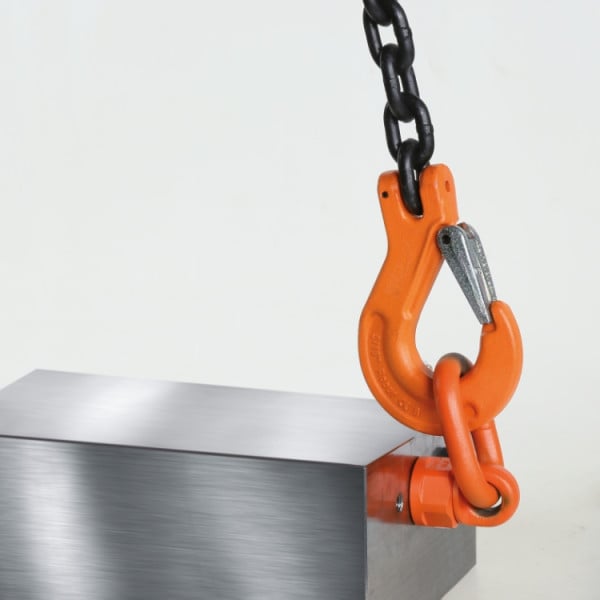

- Ball system for turning lifted load (not suitable for continuous rotation under load)
- Safety factor: 4, in all directions.
- Tested to withstand over 20,000 work cycles at full load.
- Testing load applied to 100% of pieces before sale.


TECHNICAL DATA
• safety factor: 4
• heat treatment: hardening
• traceability code
LABORATORY TESTS
• chemical analysis
• metallographic analysis
• tensile test
• fatigue test (20,000 cycles)
• testing load (100% of batch)

AVAILABLE CERTIFICATES
• Technical product specifications
• Test report UNI EN10204 type 2.2
• Inspection certificate UNI EN10204 type 3.1
• CE Declaration of Conformity
Find a dealer
PDF documents
Images with
dimensions
Product Name Art. Ø
mm		E
mm		A

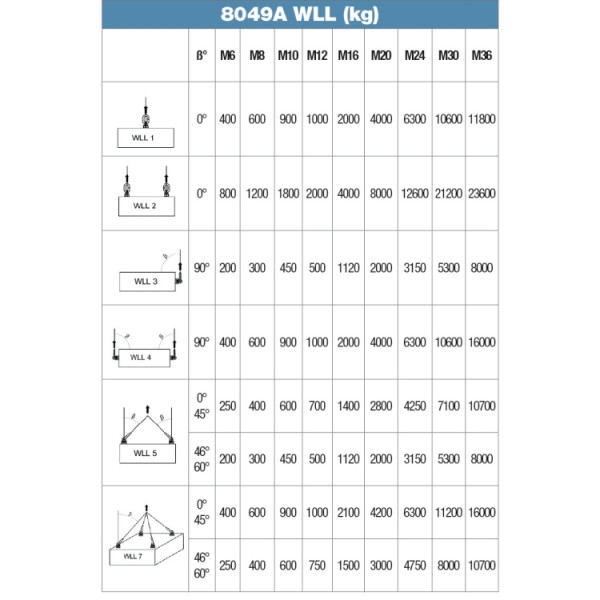

mm		WLL (90°)
kg		 Quantity per Wishlist
080490106 8049A M6M61330200
080490108 8049A M8M81330300
080490110 8049A M10M101930450
080490112 8049A M12M121930500
080490114 8049A M14M1419301120
080490116 8049A M16M1620301120
080490118 8049A M18M1830402000
080490120 8049A M20M2030402000
080490124 8049A M24M2430403150
080490130 8049A M30M3035505300
080490136 8049A M36M3654508000
