BETA 1928DAL

Reversible impact wrench

Name: Reversible impact wrench
Brand: Beta Utensili
SKU: 1928DAL

Reversible impact wrench

Assortment of one reversible impact wrench and four impact sockets, long series

BETA 1928DAL

Reversible impact wrench

Assortment of one reversible impact wrench and four impact sockets, long series

6" long anvil• Double hammer impulse device
• 6" long anvil
• Sturdy and compact; high torque
• Reversible lever
• Three power adjustable positions
• Exhaust through handle
• Slip-proof ergonomic handle

Free speed	5,000 rpm
Max. torque	1.695 Nm
Bolt capacity	Cl 8.8 M2741 mm
Bolt capacity	Cl 12.9 M2436 mm
Air inlet	3/8" GAS
Working pressure	6,2 bar
Internal hose size (Ø)	10 mm
Mean air consumption	240 l/min
Weight	4,8 kg

Certifications and Documents

Dimensions

References

The Wishlist allows you to compile a product list, export it or send it to your dealer.

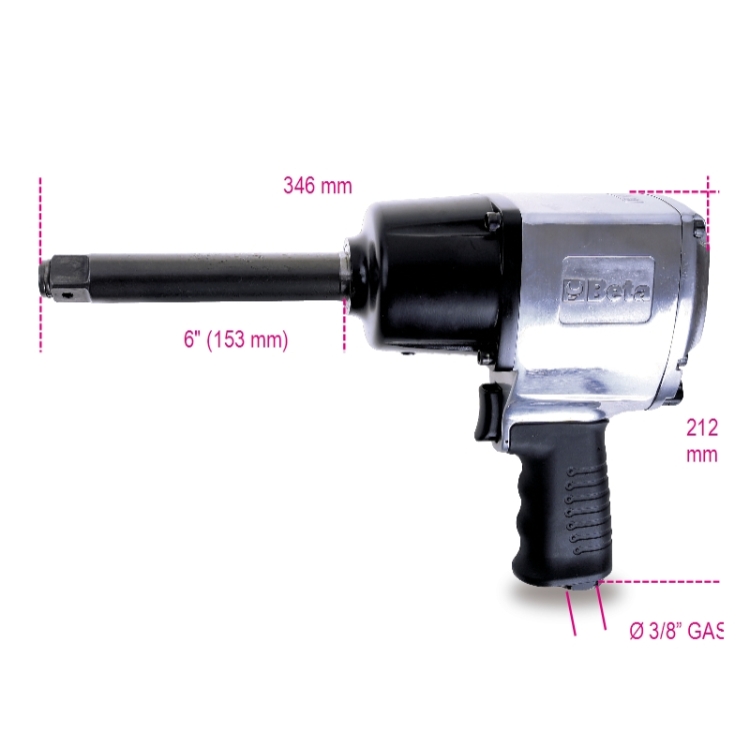

Product Name	Art.	L mm	H mm	R	MI "	 kg	Quantity	Action
019280023	1928DAL	346	212	3/8" GAS	3/4	4,8

Accessories and spare parts

Spare parts

Id	Product Name	Art.	Description
1B	019301007		Allen Screw (8 pcs.)
2	019301006		Washer (8 pcs.)
3	019280946		Front Housing
4	019280301	1928 P-CD01	Grease fitting
5	019280304	1928 P-CD04	Anvil Bushing
6	019280307	1928 P-CD07	O-Ring
7	019280306	1928 P-CD06	Retainer Ring
8	019280971		Anvil
9	019280309	1928 P-CD09	Hammer Pin (2 pcs.)
10	019300357		Steel Ball (4 pcs.) until 11080001
11	019280350		Hammer (2 pcs.)
12	019280949		Hammer Cage
13	019280312	1928 P-CD12	Washer
14	019280950		O-Ring
15	019280951		Housing
16	019280313	1928 P-CD13	Ball Bearing
17	019280952		O-Ring
18	019280953		Oil seal
19	019280954		Front End Plate
20	019280955		Cylinder
21	019280956		Pin
22	019280957		Rotor
23C	019280972		Vanes Set (6 pcs.)
24	019280958		Trigger
25	019280335	1928 P-CD35	Pin
27	019280960		Rear End Plate
28	019280320	1928 P-CD20	Ball bearing
29	019280961		Gasket
30	019280962		Rear Cover
31	019301031		Snap Ring
32	019300306		O-Ring (3 pcs)
33	019280973		Reverse Valve
34	019270423		Spring
35	019280964		Regulator Knob
36	019280965		Spring
37	019270435		Pin
38	019280966		Bushing
39	019300337		Valve Stem
40	019280967		Spring
41	019301042		Exhaust Deflector
42	019280968		Air inlet
45	019280969		O-Ring
46	019280970		O-Ring
47	019280303	1928 P-CD03	Helicoil (4 pcs.)
48C	019280974		Rubber Handle from sn 11080001

Show full list

Certifications and documents

Product Sheet

Instruction booklet
