Automatic suction air riveter

Product was successfully added to your shopping cart.

BETA 1946C4,8

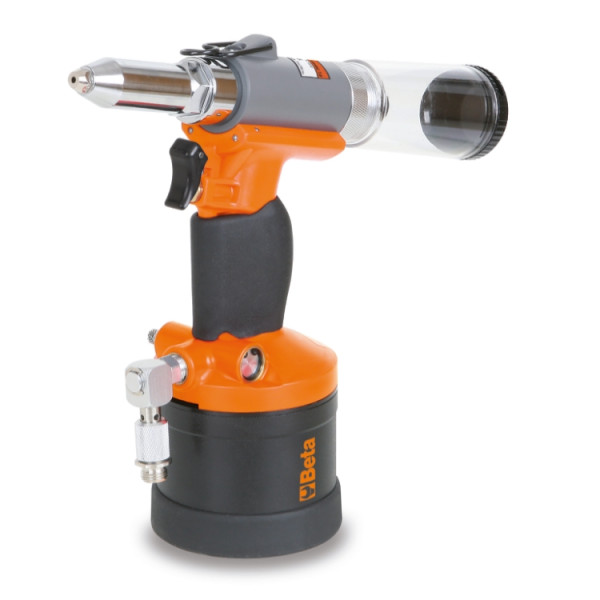

Automatic suction air riveter

Name: Automatic suction air riveter
Brand: Beta Utensili
SKU: 1946C4,8

BETA 1946C4,8

Automatic suction air riveter

Features:
• For use with 2.4 - 3.2 - 4.0 - 4.8 mm long steel, stainless steel, aluminium and copper rivets
• Pointed cone-shaped spout
• Powerful and handy, handle made of composite material
• Complete with safety nail container and oil gun
• Keep suction valve fully open (part 58)

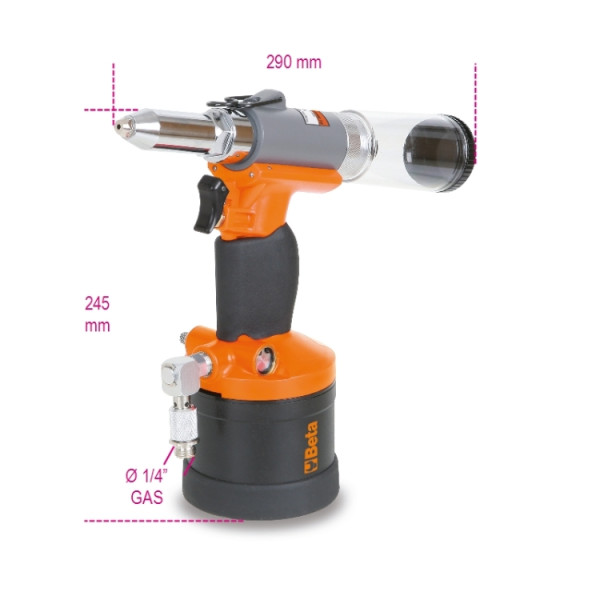

Traction power	8,900 N
Stroke length	15 mm
Maximum rivet capacity	Stainless steel Ø 4.8 mm
Air inlet	1/4" GAS
Operating pressure	6,2 bar
Internal hose size (Ø)	10 mm
Air consumption	2.6 l/cycle
Weight	1.5 kg

Certifications and Documents

References

The Wishlist allows you to compile a product list, export it or send it to your dealer.

Product Name	Art.		 kg	Quantity	Action
019460006	1946C 4,8	1946C 4,8-air riveter	1,5

Accessories and spare parts

Spare parts

Id	Product Name	Description
1	019460801	Cylinder Cap
2	019460802	Rubber Bottom
3	019460803	Air Cylinder Body
4	019460804	O-Ring
5	019460805	Gommino paracolpi
6	019460806	Washer
7	019460807	Air Piston
8	019460808	O-Ring
9	019460809	O-Ring (2 pz.)
10	019460810	O-Ring
12	019460812	O-Ring
13	019460813	Tube
14	019460814	Rod
15	019460815	Stem Nut
16	019460816	Oil seal
17I	019460817	O-Ring (from sn 00900-01099)
18	019460818	O-Ring
19	019460819	Stem
20	019460820	Muffler
21	019460821	Pad
22	019460822	O-Ring (4 pcs.)
23	019460823	Cage (4 pcs.)
24	019460824	Spring
25	019460825	Valve
26	019460826	Valve Cap
27	019460827	Retaining Ring
28	019460828	Pistone della valvola
29	019460829	Corpo dell'impugnatura
30	019460830	O-Ring
31	019460831	Guida valvola
32	019460832	Testa valvola
33	019460833	Grilletto
34	019460834	Perno della molla
35	019460835	O-Ring
36	019460836	O-Ring
37	019460837	Nosepiece 4.8 mm
37-1	019460870	Nosepiece 4 mm
37-2	019460871	Nosepiece 3.2 mm
37-3	019460872	Nosepiece 2.4 mm
38	019460838	Frame Head
39	019460839	Jaw Housing
40	019460840	Jaw (3 pcs.)
41	019460841	Jaw Pusher and tube (until sn 00900-01099)
41I	019460874	Jaw pusher (from sn 00900-01099)
42	019460842	Jaw Housing Coupler
43	019460843	Spring
44	019460844	O-Ring (until sn 00900-01099)
44I	019460875	O-ring (from sn 00900-01099)
45	019460845	Case Washer
46	019460846	Case Lock Nut
47	019460847	Seal
48	019460848	O-Ring
49	019460849	Guarnzione
50	019460850	Hexagon Socket Screw
51	019460851	Hook
52	019460852	O-Ring (until sn 00900-01099)
53	019460853	Oil Cylinder Body
54	019460854	Piston Rod (until sn 00900-01099)
54I	019460876	Piston (from sn 00900-01099)
55I	019460877	Piston rear axle (from sn 00900-01099)
56	019460855	Spring
57	019460856	Blue Seal
58	019460857	Rotary Valve (until sn 00900-01099)
58I	019460878	Frame cap (from sn 00900-01099)
59	019460858	Spent Mandrel Bottle
60	019460859	O-Ring
61	019460860	Tappo
61-1	019460861	Silenziatore
62	019460862	Spanner
63	019460863	Spanner Gauge
64	019460864	Oil Can
65	019460865	Attacco aria
66	019460866	O-Ring (4 pcs.)
67	019460867	O-Ring
68	019460868	Protezione Tappo
69	019460869	O-Ring (2 pcs.)
