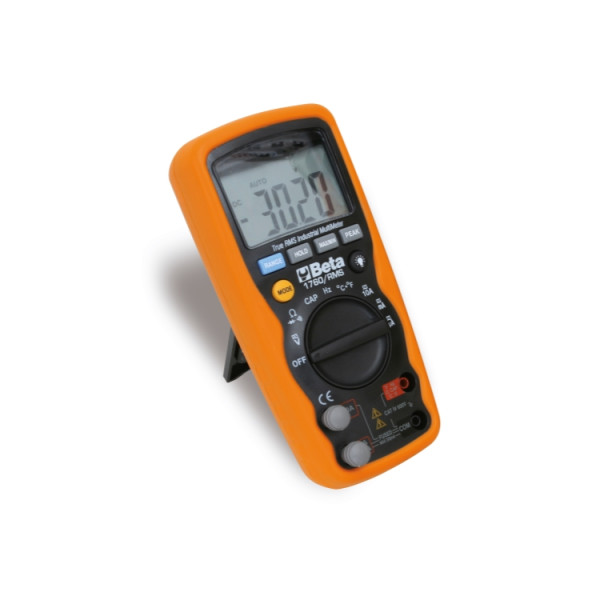

BETA 1760/RMS

Industrial digital multimeter accurate and sturdy, in a 6-mm co-moulded shell, with antislip, shockproof outer rubber part

BETA 1760/RMS

Industrial digital multimeter accurate and sturdy, in a 6-mm co-moulded shell, with antislip, shockproof outer rubber part

New ItemShockproof: tested for falls up to 2 metresWaterproof IP67Features:

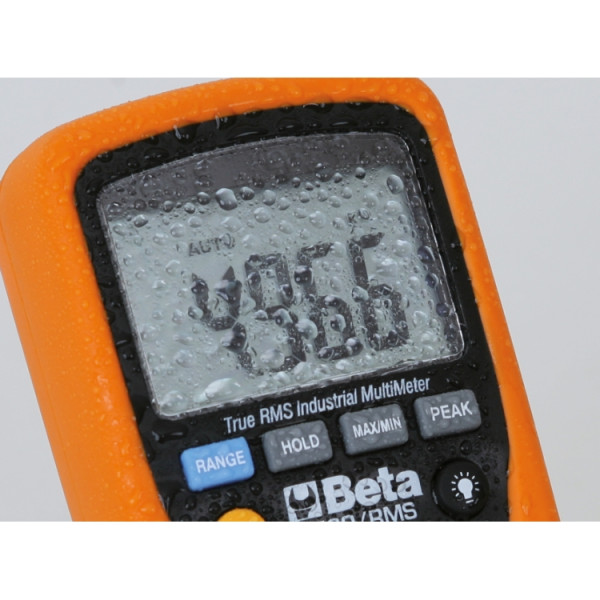

• Water protection IP67
• Protection up to 1000V
• Tested for accidental falls up to 2 m
• Protected inlets
• Autoranging

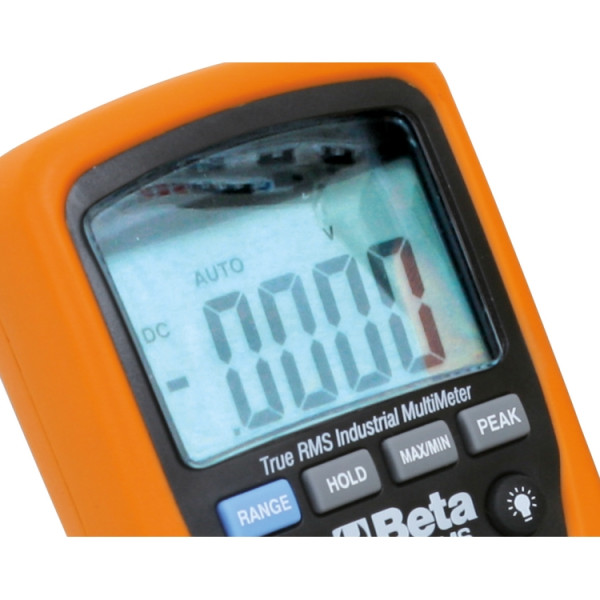

• Large direct reading display, backlit, blue
• K type temperature probe (included)
• Self-power down
• Rubber terminal base for enhanced operating comfort
• Double insulated terminals, 1000V, 1 m long

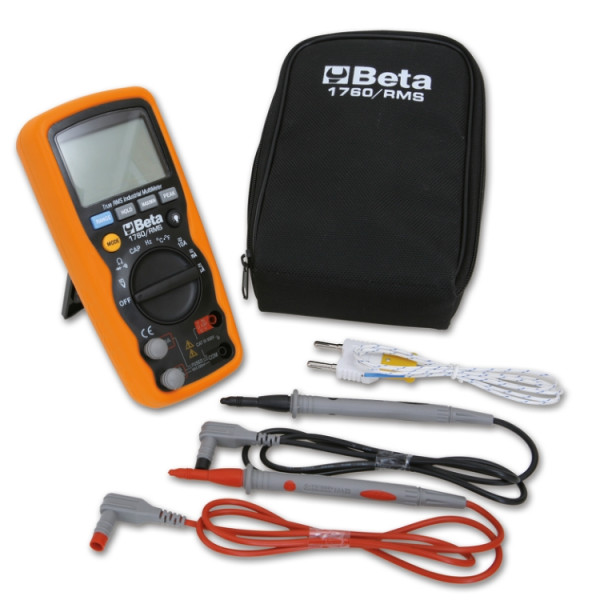

• Supplied in a soft case
• CAT IV 600V/ CAT III 1000V
• Actual effective value TRUE RMS

Technical Features:
Measuring range Base accuracy
AC/DC voltage 110mV – 600V ±0.8% - ±2% rdg
AC/DC current 110μA – 10A ±1.5% - ±2% rdg
Resistance 110Ω – 40MΩ ±1.2% - ±2.5% rdg
Capacity 11nF – 40mF ±5% - ±10% rdg (up to 11mF)
Frequency 1100Hz – 110 MHz ±1.2% - ±1.5% rdg
Temperature -32°C – +1000°C ±3% - ±5% rdg
Diode test, 3V DC ±10% rdg
Continuity test <30 Ω - 375 g

Certifications and Documents
EN61010-1
EN61326-1
Dimensions#

Weight: 375 g

References#
