BETA 1936/4A

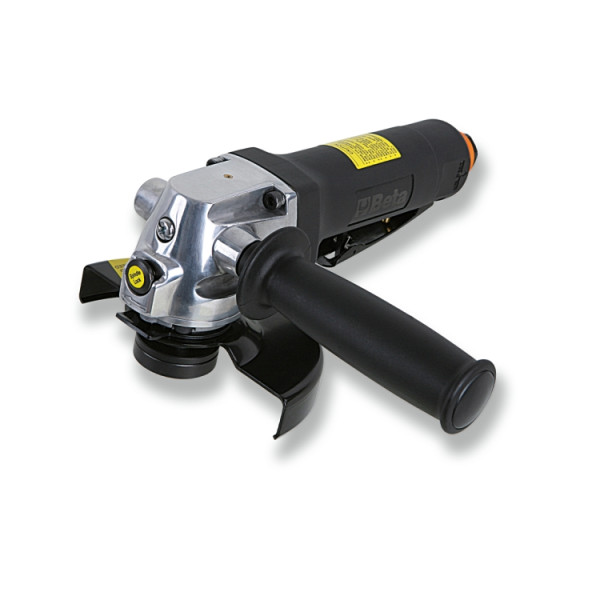

Angle grinder

Name: Angle grinder
Brand: Beta Utensili
SKU: 1936/4A

High-speed micro die grinder

Angle grinder

BETA 1936/4A

Angle grinder

High-speed micro die grinder

Angle grinder

• Extremely compact and handy
• Air governor for automatically controlling top speed
• Right-hand/left-hand auxiliary handle
• Spindle lock button
• Accessory for quickly changing discs
• Safety cap can be quickly adjusted in nine different positions through quick release

Free speed	11,000 rpm
Grinding disc size	115 mm
Power	0,66 kW
Spindle thread	M14
Air inlet	1/4" GAS
Operating pressure	6,2 bar
Internal hose size (Ø)	10 mm
Mean air consumption	390 l/min
Weight	1.77 kg

Certifications and Documents

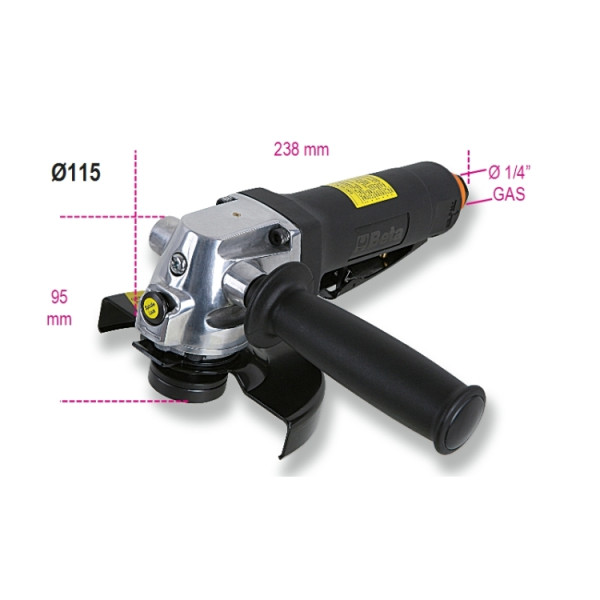

Dimensions

References

The Wishlist allows you to compile a product list, export it or send it to your dealer.

Product Name	Art.	L mm	H mm	R	 kg	Quantity	Action
019360024	1936/4A	238	95	1/4" GAS	1,8

Accessories and spare parts

Spare parts

Id	Product Name	Description
1	019360800	1936 A P-1-housing
2	019360702	1936 /5P P-02-lever pin
3	019360703	1936 /5P P-03-air inlet
4	019330556	1933 I P-04-lever i p-04
5	019360801	1936 A P-5-valve pin
6	019360705	1936 /5P P-06-spacer
7	019360706	1936 /5P P-07-o-ring
8	019360707	Spring
10	019360708	1936 /5P P-10-stem valve
12	019360709	1936 /5P P-12-bushing
13	019330520	1933 _/AN/L P-20-ball bearing
14	019360710	1936 /5P P-14-rear end plate
15	019360711	1936 /5P P-15-rotor
16	019360712	1936 /5P P-16-vanes set (4 pcs.)
17	019360713	1936 /5P P-17-pin
18	019360714	1936 /5P P-18-cylinder
19	019360715	1936 /5P P-19-front end plate
20	019360716	Ball bearings Ø int 12mm (2 pcs)
21	019360717	1936 /5P P-21-gasket
22	019360718	1936 /5P P-22-driving gear
23	019360719	1936 /5P P-23-angle housing
24	019360720	1936 /5P P-24-washer (4 pcs.)
25	019360721	1936 /5P P-25-screw (4 pcs.)
26	019360722	1936 /5P P-26-spacer
27	019360723	1936 /5P P-27-screw
28	019360724	1936 /5P P-28-ball bearing
29	019360725	1936 /5P P-29-retainer ring
30	019360726	1936 /5P P-30-driven gear
31	019360727	1936 /5P P-31-shim adjusting
32	019360728	1936 /5P P-32-ball bearing
33	019360729	1936 /5P P-33-m14 wheel spindle
34	019360730	1936 /5P P-34-key
35	019360731	1936 /5P P-35-spacer
36	019360732	1936 /5P P-36-cover ring
37	019360803	1936 /4A-P37-guard 4"5
38	019360734	1936 /5P P-38-wheel flange
39	019360735	1936 /5P P-39-pin
40	019360736	1936 /5P P-40-wheel nut flange
	019360802	1936 a - p40b-wheel nut flange
41	019360737	1936 /5P P-41-screw
42	019360738	1936 /5P P-42-nut
43	019360739	1936 /5P P-43-screw (4 pcs.)
44	019360740	1936 /5P P-44-rear cylinder
45	019360741	1936 /5P P-45-spring
46	019360742	1936 /5P P-46-cage
47	019360743	1936 /5P P-47-weight (6 pcs.)
48	019360744	1936 /5P P-48-pin (2 pcs.)
49	019360745	1936 /5P P-49-o-ring
50	019330585	1933 I P-41-spring i p-41
51	019330584	1933 I P-40-safety lever i p-40
52	019330580	1933 I P-34-pin i p-34
53	019360746	1936 /5P P-53-exhaust deflector
54	019360747	1936 /5P P-54-handle
55	019360748	1936 /5P P-55-spanner
56	019360749	1936 /5P P-56-retainer ring
57	019360750	1936 /5P P-57-bushing
58	019360751	1936 /5P P-58-o-ring
59	019360752	1936 /5P P-59-spring
60	019360753	1936 /5P P-60-spindle stop button
61	019360754	1936 /5P P-61-screw (2 pcs.)
66	019360759	1936 /5P P-66-o-ring
68	019360760	1936 /5P P-68-spring
69	019360761	1936 /5P P-69-ring
70	019360762	1936 /5P P-70-disk spring
71	019360763	1936 /5P P-71-retainer ring
79	019360764	1936 /5P P-79-felt oiler
80	019360765	1936 /5P P-80-steady
81	019360766	1936 /5P P-81-washer
82	019360767	1936 /5P P-82-greaser

Show full list
