VERSATILITY
Can be used with two jaws for easier and faster work, or with three jaws for greater working stability.
STABILITY
The self-locking function guarantees stable and precise extraction of the workpiece.
SAFETY
The safety pin positioned at the head of the screw breaks when the maximum permissible torque is exceeded, thus safeguarding the extractor against overloading.

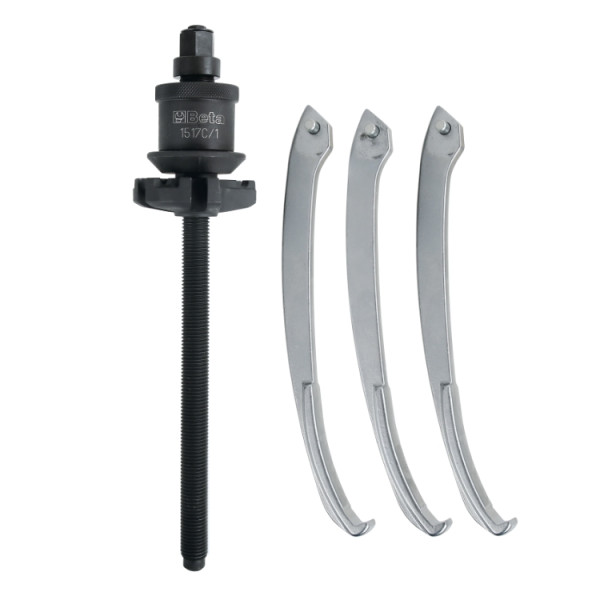

USE WITH TWO OR THREE LOOSE LEGS
4-slot crossbar designed for use with only two loose legs or with three for greater stability.

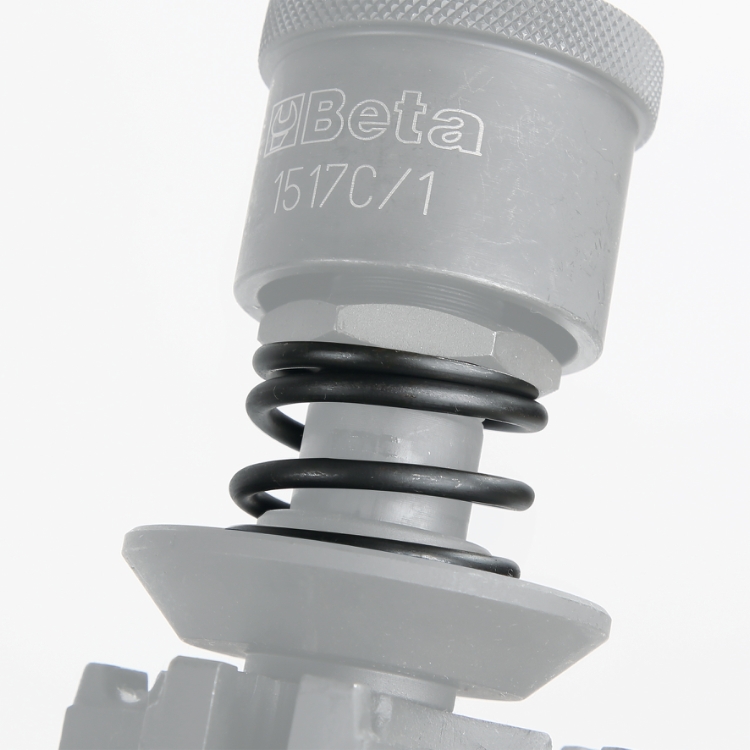

SELF-LOCKING
The spring inside the locking system makes the extractor self-locking and easy to use

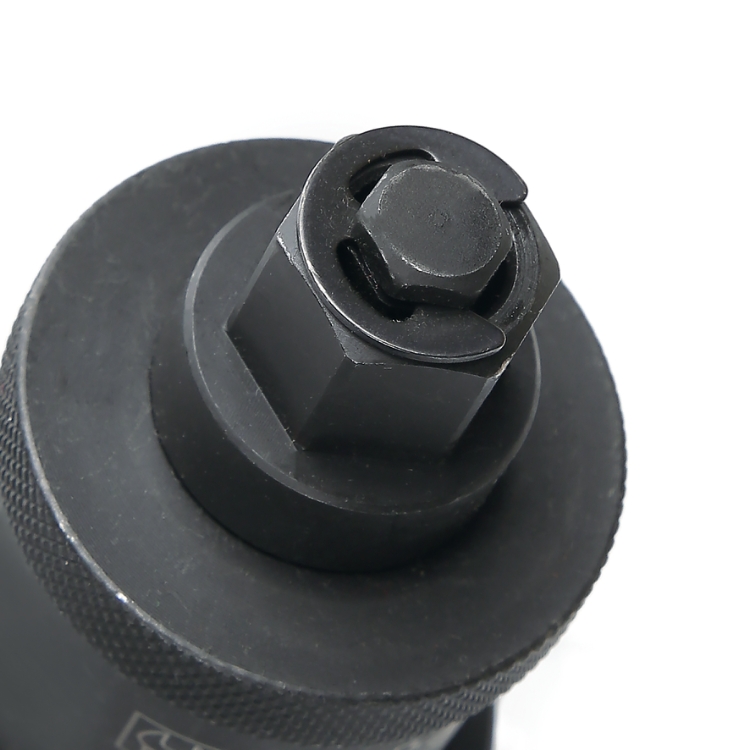

SAFETY PIN
integrated safety pin to prevent overloading and unwanted breakage of the extractor.
| Product Name | Art. | A min÷max mm | L mm | L1 mm | mm |
Quantity | Action |
|---|---|---|---|---|---|---|---|
| 015170500 | 1517C/0 | 12÷140 | 145 | 250 | 18 |
|
|
| 015170501 | 1517C/1 | 20÷180 | 200 | 300 | 18 |
|
|
| 015170502 | 1517C/2 | 30÷280 | 270 | 300 | 18 |
|
|
