| Název produktu | Art. | L mm | R | MI " |
kg |
Množství | Akce |
|---|---|---|---|---|---|---|---|

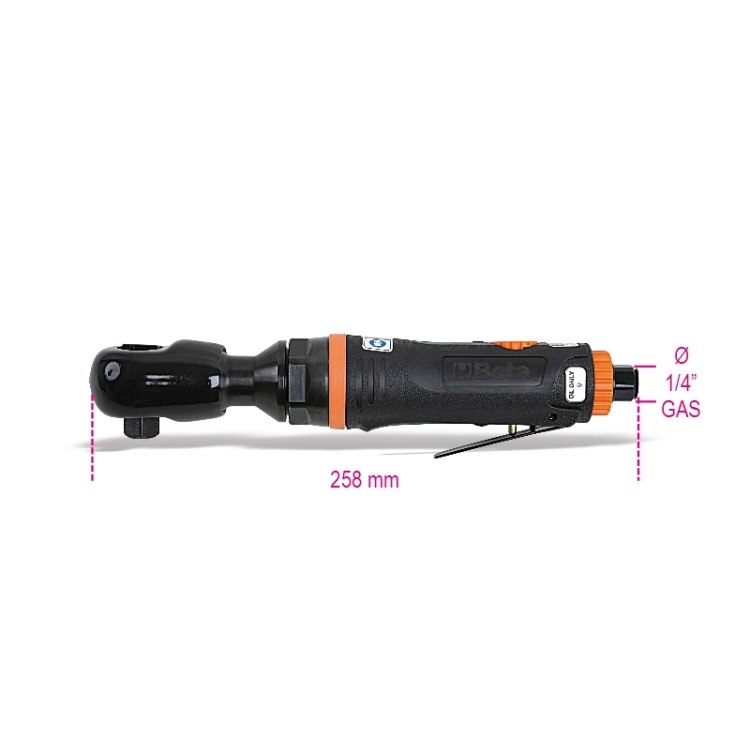

| 019210025 | 1921N3 | 258 | 1/4" GAS | 1/2 | 1,2 |
|
|
| Id | Obrázek | Název produktu | Art. | Popis | Množství | Akce |
|---|---|---|---|---|---|---|
| 1 | 019210593 | Housing |
|
|
||
| 2 | 019210502 | Spring pin |
|
|
||
| 3 | 019210547 | Air inlet |
|
|
||
| 4 | 019210594 | Throttle lever |
|
|
||
| 5 | 019210595 | Valve pin |
|
|
||
| 6 | 019210596 | Valve seat |
|
|
||
| 7 | 019210597 | O-Ring |
|
|
||
| 8 | 019210598 | Spring |
|
|
||
| 9 | 019210544 | O-Ring |
|
|
||
| 10 | 019210564 | Air regulator |
|
|
||
| 11 | 019210587 | O-Ring (2 pcs.) |
|
|
||
| 12 | 019210599 | Valve |
|
|
||
| 13 | 019210509 | Ball bearing |
|
|
||
| 14 | 019210600 | Rear end plate |
|
|
||
| 15 | 019210601 | Rotor |
|
|
||
| 16 | 019210602 | Rotor blades (4 pcs.) |
|
|
||
| 17 | 019210603 | Pins (2 pcs.) |
|
|
||
| 18 | 019210604 | Cylinder |
|
|
||
| 19 | 019210605 | Front end plate |
|
|
||
| 20 | 019310596 | Ball bearing |
|
|
||
| 21 | 019210606 | Spacer |
|
|
||
| 22 | 019210607 | Rim |
|
|
||
| 23 | 019210608 | Planet gears (3 pcs.) |
|
|
||
| 24 | 019210609 | Gear pins (3 pcs.) |
|
|
||
| 25 | 019210610 | Gear cage |
|
|
||
| 26 | 019210611 | Ring nut |
|
|
||
| 27 | 019210612 | Neddle bearing |
|
|
||
| 28 | 019210613 | Ratchet housing |
|
|
||
| 29 | 019210614 | Bushing |
|
|
||
| 30 | 019210615 | Crank shaft |
|
|
||
| 31 | 019210616 | Pawl |
|
|
||
| 32 | 019210617 | Yoke |
|
|
||
| 33 | 019210618 | Reverse knob |
|
|
||
| 34 | 019210619 | Spring |
|
|
||
| 35 | 019210620 | Pin |
|
|
||
| 36 | 019210621 | Washer |
|
|
||
| 37 | 019210622 | Ratchet pawl |
|
|
||
| 38 | 019210623 | Ratchet pawl |
|
|
||
| 39 | 019210624 | Springs (2 pcs.) |
|
|
||
| 40 | 019210625 | Pin |
|
|
||
| 41 | 019210626 | Washer |
|
|
||
| 42 | 019210627 | Seeger ring |
|
|
||
| 43 | 019210628 | Steel balls (2 pcs.) |
|
|
||
| 44 | 019210542 | O-Ring |
|
|
||
| 45 | 019210584 | Exhaust fixing |
|
|
||
| 46 | 019210585 | O-Ring |
|
|
||
| 47 | 019210586 | Washer |
|
|
||
| 48 | 019210629 | Exhaust deflector |
|
|
||
| 49 | 019210630 | O-Ring |
|
|
||
| 50 | 019210631 | Rubber protection |
|
|
||
| 52 | 019210541 | Spring pin |
|
|
||
| 53 | 019210536 | Spring pin |
|
|
||
| 54 | 019210632 | Bushings (3 pcs.) |
|
|
||
| 55 | 019210633 | Damping bushing |
|
|
||
| 56 | 019210634 | Rubber protection |
|
|
||
| 57 | 019210635 | O-Ring |
|
|
