1930HLA

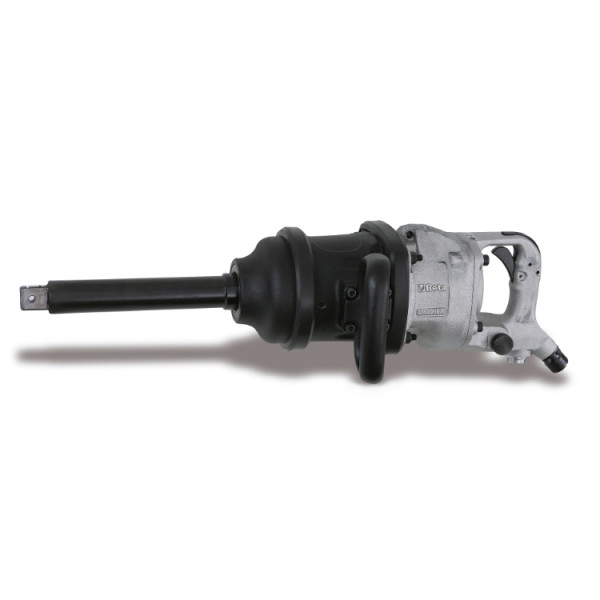

Clé à chocs réversible 1"

Quick Overview

Couple de serrage élevée
• Mécanisme à double frappe
• Arbre de 9"
• Poignée auxiliaire
• Commande d'inversion à levier
• 3 niveaux de réglage de la puissance de vissage
• Échappement de l'air par la partie supérieure du corps
Vitesse à vide3.000 tours/min
Couple de serrage maximum3.661 Nm
Capacité vis/écrouCl 8.8 M4265 mm
Capacité vis/écrouCl 12.9 M3350 mm
Filetage d'arrivée d'air1/2" GAS
Pression d'utilisation6,2 bar
Ø intérieur du tuyau d'air13 mm
Consommation d'air moyenne460 l/min
Poids16,4 kg
Images

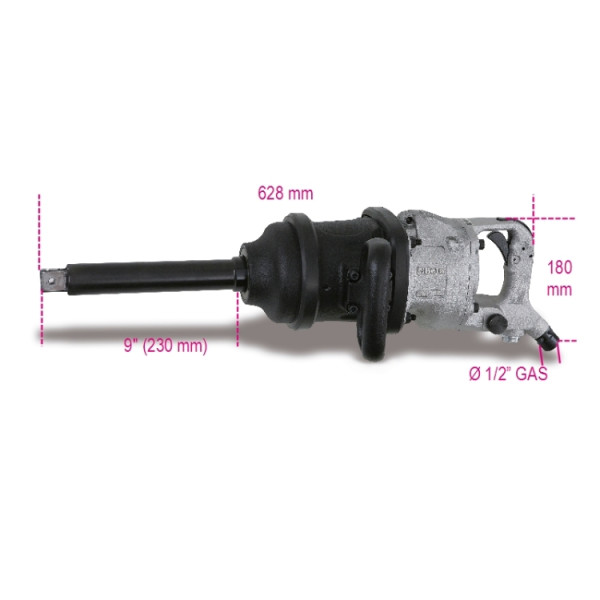

dimensions
Nom du produit Art.

kg
Quantités
019300040 1930HLA 116,4
Id Image Nom du produit Art. Description Quantités
1+8+26 019301101 1930 p-hla/zl1-handle frame
2 019300223 1930 p-la33-pin
3 019301102 1930 p-hla/zl3-trigger
4 019301103 1930 p-hla/zl4-spring pin
5 019301104 1930 p-hla/zl5-o-ring
6 019301105 1930 p-hla/zl6-air inlet (1/2”pf)
7 019301106 1930 p-hla/zl7-cap screw (4 pcs.)
8 019301107 1930 p-hla/zl8-regulator bushing
9 019301108 1930 p-hla/zl9-o-ring
10 019301109 1930 p-hla/zl10-regulator
11 019301053 1930 P-PA53-o-ring p-pa53
12 019301110 1930 p-hla/zl12-regulator valve gasket
13 019301111 1930 p-hla/zl13-washer
14 019301112 1930 p-hla/zl14-snap ring
15 019301113 1930 P-HLA/ZL15-snap ring
16 019300393 1930-bushing p-n/hcd56
17 019301114 1930 P-HLA/ZL17-valve stem
18 019301115 1930 p-hla/zl18-valve throttle
19 019301116 1930 p-hla/zl19-spring
20 019301117 1930 P-HLA/ZL20-o-ring
21 019301118 1930 P-HLA/ZL21-plug
22 019301119 1930 p-hla/zl22-o-ring
23 019301120 1930 P-HLA/ZL23-oil chamber screw
24 019301121 1930 P-HLA/ZL24-spring
25 019301039 1930 P-PA39-steel ball p-pa39
27 019301123 1930 P-HLA/ZL27-reverse valve
28 019301124 1930 p-hla/zl28-o-ring
29 019301125 1930 p-hla/zl29-snap ring
30 019301126 1930 P-HLA/ZL30-reverse lever
31 019301127 1930 P-HLA/ZL31-screw
32 019301128 1930 p-hla/zl32-regulator knob
33 019301129 1930 p-hla/zl33-spring pin
34 019300203 1930 p-la04-spring washer
35 019301007 Allen Screw (8 pcs.)
36 019301130 1930 p-hla/zl36-rear gasket
37 019300313 Ball Bearing
38 019301131 1930 P-HLA/ZL38-end plate
39 019300216 1930 p-la23-elastic pin
40 019301132 1930 p-hla/zl40-cylinder
41 019301133 1930 p-hla/zl41-spring pin (2 pcs.)
42E 019301143 1930 p-hla/zl42e-rotor
43E 019301144 1930 p-hla/zl43e-rotor blade (6 pcs.)
44E 019301145 1930 p-hla/zl44e-ball bearing
45E 019301146 1930 p-hla/zl45e-motor housing
46 019301134 1930 P-HLA/ZL46-spring
47 019301135 1930 p-hla/zl47-steel ball
48 019300212 1930 p-la18-nut
49 019301136 1930 P-HLA/ZL49-inserts recoil (4 pcs.)
50E 019301147 1930 p-hla/zl50e-ball bearing
51 019301137 1930 P-HLA/ZL51-front gasket
52E 019301148 1930 p-hla/zl52e-rear washer
53F 019301155 1930 p-hla53f-hammer cage
54F 019301149 1930 p-hla/zl54f-hammer (2 pcs.)
55 019301138 1930 p-hla/zl55-hammer pin (2 pcs.)
56F 019301156 1930 p-hla56f-9'' anvil
57 019301153 1930 p-hla57-anvil bushing
58 019301139 1930 p-hla/zl58-rear rubber
59 019301140 1930 p-hla/zl59-hammer case
60D 019301150 1930 p-hla/zl60d-front rubber
61 019301154 1930 p-hla61-oil seal
62 019300202 1930 p-la03-allen srew
63 019300361 1930-washer (4 pcs.) p-ncd14
64 019300362 1930-screw (4 pcs.) p-ncd15
65 019300363 1930-handle p-ncd16
66 019301141 1930 p-hla/zl66-set screw
67 019301142 1930 p-hla/zl67-gasket
68E 019301151 1930 p-hla/zl68e-spring pin
69E 019301152 1930 p-hla/zl69e-front end plate
70 019300306 O-Ring (3 pcs)
71 019300305 Retainer Ring
72 019301161 1930 P- HLA/ZL72-rubber protection
